Stainless Steel Ball Valve

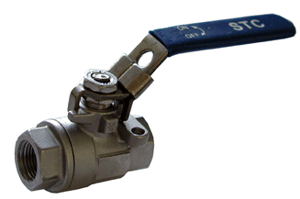

Ball Valve
Model: V2

 Model: V2  SPECIFICATIONS

Two Piece Full Port 316 Stainless Steel Ball Valve

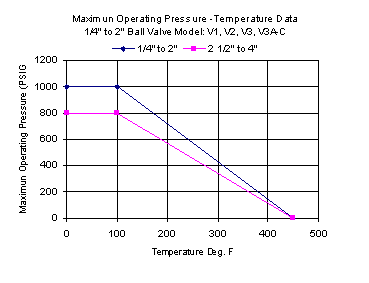

Maximum Operating Pressure:
1/4” to 2” 1000 PSIG @ 100ºF WOG*
2 1/2" to 3" 800 PSIG @ 100ºF WOG*

Temperature  Range: -60 to 450ºF*

End Connections: NPT Threaded

MAIN PARTS AND MATERIALS

NO
PART NAME
MATERIAL
QTY
1
SEAT PTFE
2
2
BALL SS316/CF8M
1
3
JOINT GASKET PTFE
1
4
CAP SS316
1
5
BODY SS316
1
6
STEM SS316
1
7
THRUST WASHER PTFE
1
8
STEM PACKING PTFE
1
9
GLAND NUT SS304
1
10
STEM WASHER SS304
1
11
STEM NUT SS304
1
12
HANDLE COVER PLASTIC
1
13
HANDLE SS304
1

   DIMENSIONS (mm)

SIZE
1/4
3/8
1/2
3/4
1
1 1/4
1 1/2
2
2 1/2
3
d
11.6
12.7
15
20
25.4
32
38
50.8
65
76
L
55
55
63.5
75
88
103
110
124
167
192
H
48
48
50
57
69
73
83
92
136
149
W
103
103
103
125
145
145
190
190
250
250
