Sanitary Valves



Model: V3C

Model: V3C  SPECIFICATIONS

Sanitary Stainless Steel Ball Valve: These valves are made with a precision machined Teflon seat for use in Sanitary applications. They utilize a three piece design and have four bolts that permit quick and easy access to service the valve without disrupting the pipe line connections.

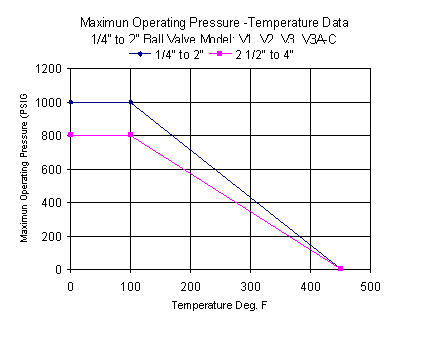

Maximum Operating Pressure:
1/2" to 2" 1000 PSI @ 100ºF WOG*
2 1/2" to 4" 800 PSI @ 100ºF WOG*

Temperature  Range: -60 to 450ºF*

Full Port

End Connections: Clamp End

Mounting Options: Padlocking device and actuator mounting bracket

MAIN PARTS AND MATERIALS

NO

PART NAME

MATERIAL

QTY

1

SEAT

PTFE

2

2

BALL

SS316

1

3

JOINT GASKET

PTFE

1

4

CAP

SS316

1

5

BODY, BODY CONNECTOR

SS316/CF8M

1, 2

6

STEM

SS316

1

7

THRUST WASHER

PTFE

1

8

STEM PACKING

PTFE

1

9

GLAND NUT

SS304

1

10

STEM WASHER

SS304

1

11

STEM NUT

SS304

1

12

HANDLE COVER

PLASTIC

1

13

HANDLE

SS304

1

14

BODY CONNECTOR BOLT

SS304

4

15

BODY CONNECTOR NUT & WASHER

SS304

4

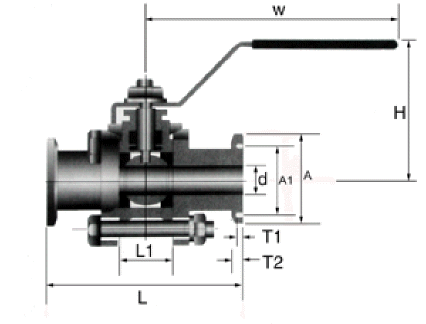

DIMENSIONS (mm)

SIZE
PORT
L
A
d
H
T1
T2
W
1/2"
9.6
75
25.0
20.24
64
--
3.63
125
3/4"
15.9
90
25.0
20.24
67
--
3.63
125
1"
22.2
100
50.4
43.60
83
2.85
4.75
140
11/4"
28.5
110
50.4
43.60
89
2.85
4.75
140
11/2"
34.9
125
50.4
43.60
100
2.85
--
2002
2"
47.5
150
63.9
56.30
108
2.85
--
200
2 1/2"
60.2
190
77.4
70.60
150
2.85
--
250
3"
72.9
220
90.0
83.30
161
2.85
--
250
4"
97.4
270
118.9
110.30
180
2.85
--
250
