Solenoid Valve Specifications and Dimensions: 2P160-250 and 2PO160-250 Series


2P160-1/2

1/2" NPT

1 =12VDC
2 =24VDC

2A =24VAC
3 =110VAC
4 =220VAC
(50/60Hz)

Cv=4.8
Orifice:16mm

12-20W

Service: Air, Liquid, Oil, Water
Direct Lift Diaphragm
Normally Closed
Two Way Diaphragm
PA Plastic Solenoid Valve
Temperature:
32-122°F (0 TO 50 °C)
 (with NBR Seal)
Pressure: Vacuum to 90 PSI
Vacuum Reverse Flow Direction

2P200-3/4

3/4" NPT

Cv=7.6
Orifice:20mm

2P250-1

1" NPT

Cv=12
Orifice:25mm


2PO160-1/2

1/2" NPT

1 =12VDC
2 =24VDC

2A =24VAC
3 =110VAC
4 =220VAC
(50/60Hz)

Cv=4.8
Orifice:16mm

12-20W

Service: Air, Liquid, Oil, Water
Direct Lift Diaphragm
Normally Open
Two Way Diaphragm
PA Plastic Solenoid Valve
Temperature:
32-122°F (0 TO 50 °C)
 (with NBR Seal)
Pressure: Vacuum to 90 PSI
Vacuum Reverse Flow Direction

2PO200-3/4

3/4" NPT

Cv=7.6
Orifice:20mm

2PO250-1

1" NPT

Cv=12
Orifice:25mm

Valve Model

2P160-1/2 2P200-3/4 2P250-1 2PO160-1/2 2PO200-3/4 2PO250-1

Valve Type

2 Way Normally Closed (NO)

2 Way Normally Open (NO)

Action

Direct Lift Diaphragm

Cv (Orifice)

Operating Pressure

 0  to 90 PSI

Operating Temperature

32 to 122 °F (0 TO 50 °C)

Port Size (NPT)

1/2 3/4 1 1/2 1

Body Materials

Engineered Nylon Plastic

Seal Materials

NBR

Coil Protection Insulation Class

H Class IP65

Coil Duty

100% ED

Coil Power

20W

Electrical Connections

DIN

Service

Air, Liquid, Vacuum

ALL Standard valves are supplied with CONTINUOUS DUTY COILS of the proper class of insulation for the service indicated on the valve. The coil temperature may become hot after being energized for extended periods, but it is normal. Smoke or burning odor indicates excessive coil temperature and should disconnect the power to the coil immediately.

VOLTAGES: Standard: 12-24V DC and 24-110-220-230V/50-60 Hz AC. Voltage tolerances: +10% –5% for DC, +10%-15% for AC; .

SERVICE LIFE: The service life of the solenoid valve depends on the operating conditions such as pressure, temperature, type of medium and the voltage.

Electrical Coil Connections

For DIN Coil

To connect DIN coil:
1. Remove the Philip screw from the plastic housing and unplug it from the DIN coil.
2. From the screw opening, push the terminal block out from the plastic housing.
3. Note the 1, 2 and ground markings on underside of DIN enclosure.
4. For DC DIN Coil, Connect 1 to Positive, 2 to Negative.
5. For AC DIN Coil, connect 1 to HOT wire, 2 to Neutral wire, and if required connect ground to ground wire.

For Grommet Coil

To connect Grommet coil:
1.  For DC Coil, connect one of the two wires to Positive, and the other wire to Negative.
2. For AC Coil, connect one of the two wires to HOT wire, and the other wire to neutral wire.

2P series 2/2 Direct Lift Diaphragm Normally Closed Solenoid Valve:

To open: when the valve receives an electrical signal, a magnetic field is formed which attracts the plunger covering the main orifice to lift off, causing system pressure to drop. As system pressure on the top of the diaphragm is reduced, full system pressure on the other side of the diaphragm acts to lift the diaphragm away from the main orifice, which allows media to flow through the valve. Since the bleed orifice is dimensionally smaller than the pilot orifice, the system pressure cannot rebuild on the top of the diaphragm as long as the pilot orifice remains open. When the system pressure is 0 PSI, the valve also can be operated.
To close: when the valve is de-energized, it releases its hold on the plunger. Then the plunger forced by the spring drops and covers the main orifice. The system pressure builds up on the top of the diaphragm through the bleed orifice, forcing the diaphragm down until it covers the main orifice and stops media flow through the valve. When the system pressure is 0 PSI, the valve still can be operated.

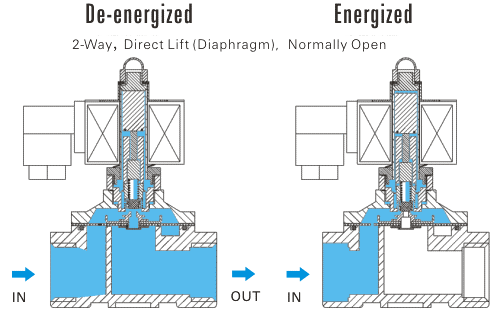

2P Series 2/2 Direct Lift Diaphragm Normally Open Solenoid Valve:

To close: when the valve is energized, it attracts the plunger. Then the plunger covers the main orifice. The system pressure builds up on the top of the diaphragm/piston through the bleed orifice, forcing the diaphragm/piston down until it covers the main orifice and stops media flow through the valve. When the system pressure is 0 PSI, the valve also can be operated.
To open: when the valve is de-energized, it releases its hold on the plunger. The plunger uncovers the pilot orifice causing system pressure holding the diaphragm/piston closed to drop. As system pressure on the top of the diaphragm/piston is reduced, full system pressure on the opposite side of the diaphragm/piston acts to lift the diaphragm/piston away from the main orifice, which allows the full media flow through the valve. When the system pressure is 0 PSI, the valve also can be operated.



MODEL: 2P160-250/2PO160-250  VALVE DIMENSIONS  (MM)

Model

Port (NPT)

Cv

Orifice

A
(2P Series Normally closed)

A
(2PO Series Normally open)

B

C
(2P Series Normally closed)

C
(2PO Series Normally open)

D

E

F

W (lb)

2P160-1/2

1/2"

4.8

16

100

113

51

115

128

74

36

60

1

2P200-3/4

3/4"

7.6

20

95

108

51

115

128

70

36

60

1

2P250-1

1"

12

25

105

118

65

125

138

87

36

60

1.2
