Solenoid Valve Specifications and Dimensions: 2S & 2W160-500 Series

Valve Model

2S160-3/8 2S160-1/2 2S200-3/4 2S250-1

2S350-1 1/4

2S400-1 1/2

2S500-2

2W160-3/8 2W160-1/2 2W200-3/4 2W250-1

2W350-1 1/4

2W400-1 1/2

2W500-2

Valve Type

2 Way Normally Closed (NC)

Action

Direct Lift Diaphragm

Cv (Orifice)

29 (40mm)

Operating Pressure

 0  to 150 PSI (110 & 220 AC Coil) , 0 to 120 (12 & 24 DC, 24VAC coil)

Operating Temperature

14 to 176 °F (-10 TO 80 °C);  5 to 248 °F (-15 TO 120 °C)  (with Viton Seal)

Port Size (NPT)

3/8 1/2 3/4 1

1 1/4

1 1/2

2

Body Materials

2S Series: Stainless Steel;     2W Series Brass

Seal Materials:

NBR (Option: Viton)

Coil Protection Insulation Class

H Class IP65

Coil Duty

100% ED

Coil Power

20W

40W

Electrical Connections

DIN

Service

Air, Gas, Liquid, Vacuum

ALL Standard valves are supplied with CONTINUOUS DUTY COILS of the proper class of insulation for the service indicated on the valve. The coil temperature may become hot after being energized for extended periods, but it is normal. Smoke or burning odor indicates excessive coil temperature and should disconnect the power to the coil immediately.

VOLTAGES: Standard: 12-24V DC and 24-110-220-230V/50-60 Hz AC. Voltage tolerances: +10% –5% for DC, +10%-15% for AC; .

SERVICE LIFE: The service life of the solenoid valve depends on the operating conditions such as pressure, temperature, type of medium and the voltage.

Electrical Coil Connections

For DIN Coil

To connect DIN coil:
1. Remove the Philip screw from the plastic housing and unplug it from the DIN coil.
2. From the screw opening, push the terminal block out from the plastic housing.
3. Note the 1, 2 and ground markings on underside of DIN enclosure.
4. For DC DIN Coil, Connect 1 to Positive, 2 to Negative.
5. For AC DIN Coil, connect 1 to HOT wire, 2 to Neutral wire, and if required connect ground to ground wire.

For Grommet Coil

To connect Grommet coil:
1.  For DC Coil, connect one of the two wires to Positive, and the other wire to Negative.
2. For AC Coil, connect one of the two wires to HOT wire, and the other wire to neutral wire.

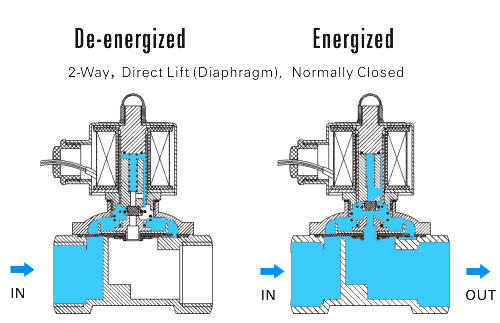

2S & 2W series 2/2 Direct Lift Diaphragm Normally Closed Solenoid Valve:

To open: when the valve receives an electrical signal, a magnetic field is formed which attracts the plunger covering the main orifice to lift off, causing system pressure to drop. As system pressure on the top of the diaphragm is reduced, full system pressure on the other side of the diaphragm acts to lift the diaphragm away from the main orifice, which allows media to flow through the valve. Since the bleed orifice is dimensionally smaller than the pilot orifice, the system pressure cannot rebuild on the top of the diaphragm as long as the pilot orifice remains open. When the system pressure is 0 PSI, the valve also can be operated.
To close: when the valve is de-energized, it releases its hold on the plunger. Then the plunger forced by the spring drops and covers the main orifice. The system pressure builds up on the top of the diaphragm through the bleed orifice, forcing the diaphragm down until it covers the main orifice and stops media flow through the valve. When the system pressure is 0 PSI, the valve still can be operated.

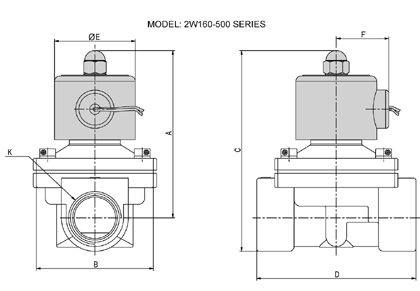

MODEL: 2S160-500 & 2W160-500 Series SOLENOID VALVE DIMENSIONS  (MM)

BRASS

STAINLESS STEEL

Port (NPT)

Cv

A

B

C

D

E

F

W (lb)

2W160-10

2S160-10

3/8"

4.8

101.5

57

117

69

36

56

1.6

2W160-15

2S160-15

1/2"

4.8

101.5

57

117

69

36

56

1.8

2W200-20

2S200-20

3/4"

7.6

107.0

57

124

73

36

56

1.8

2W250-25

2S250-25

1"

12

111.5

74

135

99

36

56

3.2

2W350-35

2S350-35

1 1/4"

24

142.0

95

172

123

63.5

66.5

5.7

2W400-40

2S400-40

1 1/2"

29

142.0

95

172

123

63.5

66.5

5.7

2W500-50

2S500-50

2"

48

172.0

123

209

168

63.5

66.5

9.9


Brass Valve                              Stainless Steel Valve
